飞牛 FNOS ARM 社区版适配设备清单

![image.png][1]
FnNAS 是一款基于最新 Linux 内核（Debian 发行版）深度定制的操作系统。它拥有强大的硬件兼容性，完美支持主流 x86 及 Arm64 设备，允许用户自由组装 NAS 并灵活扩展外部存储。现在，你可以轻松将电视盒子的 Android TV 系统替换为 FnNAS，将其变身为一台功能强大的私有数据存储服务器。

本项目得益于众多 贡献者 的辛勤付出，并在 FnNAS 官方技术大佬的指导下，专门为 Amlogic、Rockchip 和 Allwinner 架构的电视盒子构建了适配 Arm64 设备的 FnNAS 系统。构建版本完整继承了官方系统，完美支持写入 eMMC 启动及内核在线更新等功能。
```
https://github.com/ophub/fnnas
```

## FnNAS 固件默认信息

| 系统名称        | 默认账号 | 默认密码  | SSH 端口 | IP 地址 |
| -------------- | ------- | ------- | ------- | ------- |
| 🛜 [FnNAS.OS](https://github.com/ophub/fnnas/releases) | 自定义 | 自定义 | 22 | 从路由器获取 IP |
| 🐋 [FnNAS.Docker](https://hub.docker.com/u/ophub) | 自定义 | 自定义 | 22 | 宿主机 IP |

## 支持的设备列表

⬆️ 各平台（晶晨/瑞芯微/全志）型号均按 SoC 性能由高至低排列。

| SoC  | [设备](https://github.com/ophub/fnnas/releases) | [内核](https://github.com/ophub/fnnas) |
| ---- | ---- | ---- |
| a311d | [Khadas-VIM3](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/99),  [WXY-OES](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2666) | [fnnas]

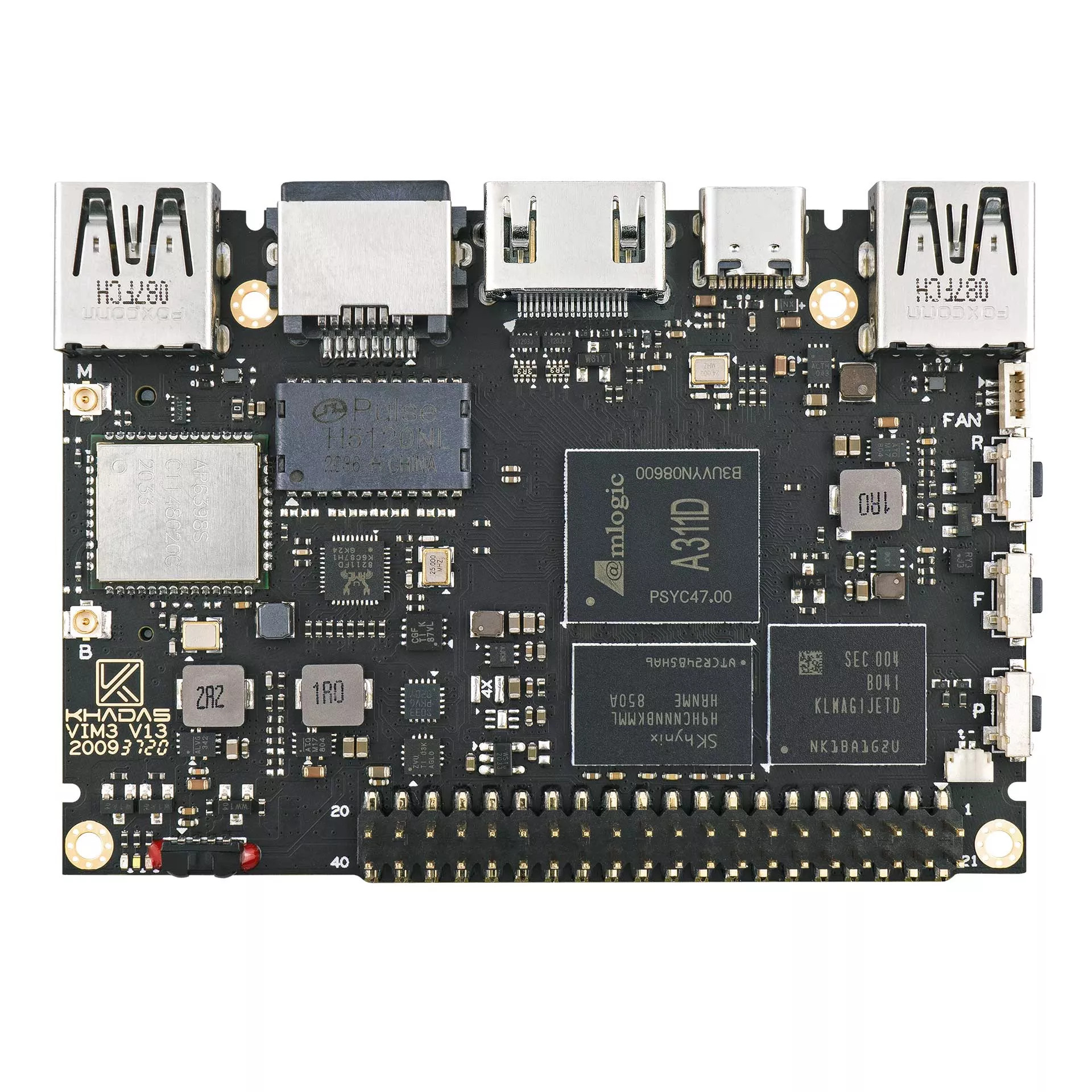

###Khadas-VIM3

[album]
<![Khadas-VIM3.png][2]
[/album]

处理器: 瑞芯微，A311D，四核 Cortex-A73 2.2GHz ，双核Cortex-A53 1.8GHz
内存：DDR4 2GB/4GB
储存：eMMC 16GB/32GB
网络：2.4GHz 802.11b/g/n
蓝牙: BLE5.2
电源: DC 12V 2A

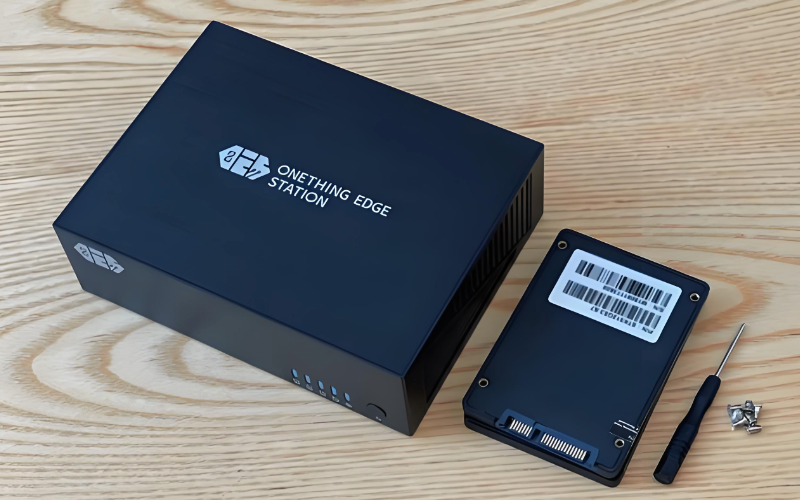

###WXY-OES
[album]
![WXY-OES][3]
[/album]

处理器: 瑞芯微，A311D，四核 Cortex-A73 2.2GHz ，双核Cortex-A53 1.8GHz
内存：DDR4 4GB
储存：eMMC 8GB
网络：千兆以太网
电源: DC 12V 3A

(https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| s922x | [Beelink-GT-King](https://github.com/ophub/amlogic-s9xxx-armbian/issues/370), [Beelink-GT-King-Pro](https://github.com/ophub/amlogic-s9xxx-armbian/issues/707), [Ugoos-AM6-Plus](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/464), [ODROID-N2](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/201), [X88-King](https://github.com/ophub/amlogic-s9xxx-armbian/issues/988), [Ali-CT2000](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1150), [WXY-OES-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3029) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

###Beelink-GT-King
[album]
![Beelink-GT-King.png][4]
[/album]
处理器: 晶晨，S922X，4核 Cortex-A73@1.8GHz 2核 Cortex-A53@1.9GHz
内存：DDR4 4GB
储存：eMMC 64GB
网络：Wi-Fi6，，蓝牙5.2，千兆以太网
电源: DC 12V 1.5A

###Beelink-GT-King-Pro
[album]
![Beelink-GT-King-Pro][5]
[/album]
处理器: 晶晨，S922X-H，4核 Cortex-A73@2.21GHz 2核 Cortex-A53@1.8GHz
内存：DDR4 4GB
储存：eMMC 64GB
网络：Wi-Fi6，，蓝牙5.2，千兆以太网
电源: DC 12V 1.5A

###Ugoos-AM6-Plus
[album]
![Ugoos-AM6-Plus.png][6]
[/album]
处理器: 晶晨，S922X-J，4核 Cortex-A73@2.2GHz 2核 Cortex-A53@1.8GHz
内存：DDR4 4GB
储存：eMMC 32GB
网络：Wi-Fi6，，蓝牙5.0，千兆以太网
电源: DC 12V 2A

###ODROID-N2
[album]
![ODROID-N2.png][7]
[/album]
处理器: 晶晨，S922X，4核 Cortex-A73@1.8GHz 2核 Cortex-A53@1.9GHz
内存：2GB/4GB LPDDR4
储存：eMMC  (8/16/32/64/128GB)
网络：千兆以太网
电源: DC 12V 2A

###X88-King
[album]
![X88-King.png][8]
[/album]
处理器: 晶晨，S922X，4核 Cortex-A73@1.8GHz 2核 Cortex-A53@1.9GHz
内存：4GB DDR4
储存：eMMC 128GB
网络：wifi2.4G/5G,千兆以太网
电源: DC 12V 2A

###Ali-CT2000
[album]
![Ali-CT2000.png][9]
[/album]
处理器: 晶晨，S922X，4核 Cortex-A73@1.8GHz 2核 Cortex-A53@1.9GHz
内存：4GB DDR4
储存：eMMC 16GB
网络：蓝牙4.0，千兆以太网
电源: DC 12V 1.5A

###WXY-OES-Plus
[album]
![WXY-OES-Plus.png][10]
[/album]
处理器: 晶晨，S922X，4核 Cortex-A73@1.8GHz 2核 Cortex-A53@1.9GHz
内存：4GB DDR4
储存：eMMC 8GB
网络：千兆以太网
电源: DC 12V 3A

| s905x3 | [X96-Max+](https://github.com/ophub/amlogic-s9xxx-armbian/issues/351), [HK1-Box](https://github.com/ophub/amlogic-s9xxx-armbian/issues/414), [Vontar-X3](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1006), [H96-Max-X3](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1250), [Ugoos-X3](https://github.com/ophub/amlogic-s9xxx-armbian/issues/782), [TX3(QZ)](https://github.com/ophub/amlogic-s9xxx-armbian/issues/644), [TX3(BZ)](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1077), [X96-Air](https://github.com/ophub/amlogic-s9xxx-armbian/issues/366), [X96-Max+_A100](https://github.com/ophub/amlogic-s9xxx-armbian/issues/779), [A95X-F3-Air](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2282), [Tencent-Aurora-3Pro(s905x3-b)](https://github.com/ophub/amlogic-s9xxx-armbian/issues/506), [X96-Max+Q1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/788), [X96-Max+100W](https://github.com/ophub/amlogic-s9xxx-armbian/issues/909), [X96-Max+_2101](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1086), [Infinity-B32](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1181), [Whale](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1166), [X88-Pro-X3](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1621), [X99-Max-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1621), [Transpeed-X3-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1621) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

###X96-Max+
[album]
![X96-Max+.png][11]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：2GB/4GB DDR3
储存： 16GB/32GB/64GB  eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.2，千兆以太网
电源: DC 12V 2A

###HK1-Box
[album]
![HK1-Box.png][12]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：4GB DDR3
储存：32GB/64GB/128GB  eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.2，千兆以太网
电源: DC 5V 2A

###Vontar-X3
[album]
![Vontar-X3.png][13]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：4GB DDR3
储存：32GB/64GB/128GB  eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.0，千兆以太网
电源: DC 5V 2A

###H96-Max-X3
[album]
![H96-Max-X3.png][14]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：4GB DDR3
储存：32GB/64GB/128GB  eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.0，千兆以太网
电源: DC 5V 2A

###Ugoos-X3
[album]
![Ugoos-X3.png][15]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：2GB/4GB DDR3
储存：16GB/32GB/64GB eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.0，千兆以太网
电源: DC 5V 2A

##TX3(QZ)
[album]
![TX3(QZ).png][16]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：4GB DDR3
储存：64GB eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.2，千兆以太网
电源: DC 5V 2A

###X96-Air
[album]
![X96-Air.png][17]
[/album]
处理器: 晶晨，S905X3，4核 Cortex-A55@1.8GHz
内存：4GB DDR3
储存：64GB eMMC
网络：Wi-Fi2.4G/5G，蓝牙4.0，千兆以太网
电源: DC 5V 2A

| s905x2 | [X96Max-4G](https://github.com/ophub/amlogic-s9xxx-armbian/issues/453), [X96Max-2G](https://github.com/ophub/amlogic-s9xxx-armbian/issues/95), [MECOOL-KM3-4G](https://github.com/ophub/amlogic-s9xxx-armbian/issues/79), [Tanix-Tx5-Max](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/351), [A95X-F2](https://github.com/ophub/amlogic-s9xxx-armbian/issues/851), [HG680-FJ](https://github.com/ophub/amlogic-s9xxx-armbian/pull/3089) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

| s905l3a | [E900V22C/D](https://github.com/Calmact/e900v22c), [CM311-1a-YST](https://github.com/ophub/amlogic-s9xxx-armbian/issues/517), [M401A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/732), [M411A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/517), [UNT403A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/970), [UNT413A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/970), [ZTE-B863AV3.2-M](https://github.com/ophub/amlogic-s9xxx-armbian/issues/741), [CM311-1a-CH](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1508), [IP112H](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1520), [B863AV3.1-M2](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2292) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
###CM311-1a-YST
[album]
![CM311-1a-YST.png][18]
[/album]
处理器: 晶晨，S905l3A，4核 Cortex-A53@1.9GHz
内存：2GB DDR3
储存：16GB eMMC
网络：蓝牙4.0，百兆以太网
电源: DC 12V 1A

| s905l3b | [CM201-1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2209), [CM211-1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1180), [CM311-1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1268), [E900V21D](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2447), [E900V22D](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1256), [E900V21E](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1514), [E900V22E](https://github.com/ophub/amlogic-s9xxx-armbian/issues/939), [M302A/M304A](https://github.com/ophub/amlogic-s9xxx-armbian/pull/615), [Hisense-IP103H](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1154), [TY1608](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1332), [TY1608](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1568), [MGV2000](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1613), [B860AV-2.1M](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1598), [UNT403A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1712), [RG020ET-CA](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1860), [M411A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3272) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

| s905l3 | [CM211-1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1318), [CM311-1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/763), [HG680-LC](https://github.com/ophub/amlogic-s9xxx-armbian/issues/978), [M401A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/921#issuecomment-1453143251), [UNT400G1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1277), [UNT400G](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2625), [UNT402A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1481), [ZXV10-BV310](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1512), [M411A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1817), [ZXV10-B860AV3.2-M](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2012), [ZXV10-B860AV2.1-U](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2273), [E900V22D-2](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2058), [CM201-1-6-YS](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2539), [IP108H](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2539), [M301A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3055) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

| s912 | [Tanix-TX8-Max](https://github.com/ophub/amlogic-s9xxx-armbian/issues/500), [Tanix-TX9-Pro(3G)](https://github.com/ophub/amlogic-s9xxx-armbian/issues/315), [Tanix-TX9-Pro(2G)](https://github.com/ophub/amlogic-s9xxx-armbian/issues/740), [Tanix-TX92](https://github.com/ophub/amlogic-s9xxx-armbian/issues/72#issuecomment-1012790770), [Tanix-TX9S](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3282), [Nexbox-A1](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/260), [Nexbox-A95X-A2](https://www.cafago.com/en/p-v2979eu-2g.html),  [A95X](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/260), [H96-Pro-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/72#issuecomment-1013071513), [VORKE-Z6-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/72), [Mecool-M8S-PRO-L](https://github.com/ophub/amlogic-s9xxx-armbian/issues/158), [Vontar-X92](https://github.com/ophub/amlogic-s9xxx-armbian/issues/525), [T95Z-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/668), [Octopus-Planet](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1020), [Phicomm-T1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/522), [TX3-Mini](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1882), [OneCloudPro-V1.1_V1.2](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2241) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
###Phicomm-T1
[album]
![Phicomm-T1.png][19]
[/album]
处理器: 晶晨，S912，8核 Cortex-A53@1.5GHz
内存：2GB DDR3
储存：16GB eMMC
网络：wifi 2.4G/5G 蓝牙4.0，百兆以太网
电源: DC 5V 2A

| s905d | [MECOOL-KI-Pro](https://github.com/ophub/amlogic-s9xxx-armbian/issues/59), [Phicomm-N1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/925), [SML-5442TW](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/451) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
###Phicomm-N1
[album]
![Phicomm-N1.png][20]
[/album]
处理器: 晶晨，S905D，4核 Cortex-A53@1.5GHz
内存：2GB DDR3
储存：8GB eMMC
网络：wifi 2.4G/5G 蓝牙4.1，千兆以太网
电源: DC 5V 2A

| s905x | [HG680P](https://github.com/ophub/amlogic-s9xxx-armbian/issues/262), [B860H](https://github.com/ophub/amlogic-s9xxx-armbian/issues/60), [TBee-Box](https://github.com/ophub/amlogic-s9xxx-armbian/issues/98), [T95](https://github.com/ophub/amlogic-s9xxx-armbian/issues/285), [TX9](https://github.com/ophub/amlogic-s9xxx-armbian/issues/645), [XiaoMI-3S](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1405), [X96](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1480), [Nexbox-a95x](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1714), [BTV9](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3256) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| s905mb | [S65](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1644) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| s905l | [UNT402A](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1481), [M201-S](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/444), [MiBox-4](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2101), [MiBox-4C](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1826), [MG101](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1912), [E900V21C](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2341), [IP108H-53u1m](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2357), [Tencent-Aurora-1s](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2465), [B860AV2.1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2491), [B860AV2.1U](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2499), [HM201](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2585) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

| s905l2 | [MGV2000](https://github.com/ophub/amlogic-s9xxx-armbian/issues/648), [MGV2000-K](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1839), [MGV3000](https://github.com/ophub/amlogic-s9xxx-armbian/issues/921), [Wojia-TV-IPBS9505](https://github.com/ophub/amlogic-s9xxx-armbian/issues/648), [M301A](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/405), [E900v21E](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1278), [e900v21d](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2127), [CM201-1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2188), [IP108H](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2598), [MGV2000-CW](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2616) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

###MGV2000
[album]
![MGV2000.png][21]
[/album]
处理器: 晶晨，S905L2 / S905L3B，4核 Cortex-A55@1.8GHz
内存：1GB/2GB DDR3
储存：8GB/16GB eMMC
网络：Wi-Fi 2.4G，百兆以太网
电源: DC 5V 1A

| s905lb | [Q96-mini](https://github.com/ophub/amlogic-s9xxx-armbian/issues/734), [BesTV-R3300L](https://github.com/ophub/amlogic-s9xxx-armbian/pull/993), [SumaVision-Q7](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1190), [MG101](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1570), [s65](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2128), [IPBS9505](https://github.com/ophub/amlogic-s9xxx-armbian/pull/993#issuecomment-2276804591) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| s905w | [X96-Mini](https://github.com/ophub/amlogic-s9xxx-armbian/issues/621), [TX3-Mini](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1062), [W95](https://github.com/ophub/amlogic-s9xxx-armbian/issues/570), [X96W/FunTV](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1044), [MXQ-Pro-4K](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1140), [MeCool-m8s-pro-W](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3245) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| s905 | [Beelink-Mini-MX-2G](https://github.com/ophub/amlogic-s9xxx-armbian/issues/127), [Sunvell-T95M](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/337), [MXQ-Pro+4K](https://github.com/ophub/amlogic-s9xxx-armbian/issues/715), [SumaVision-Q5](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1175) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| rk3588(s) | [Radxa-Rock5B](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1240), [Radxa-Rock5C](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2324), [Orange-Pi-5-Plus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2400), [Beelink-IPC-R](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/415), [HLink-H88K](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1726), [HLink-H88K-V3](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1726), [NanoPC-T6](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2453), [Smart-Am60](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2817), [DC-A588](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2988), [Orangepi-5B](https://github.com/ophub/amlogic-s9xxx-armbian/pull/3052), [CM3588-NAS](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3306) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| rk3399 | [EAIDK-610](https://github.com/ophub/amlogic-s9xxx-armbian/pull/991), [King3399](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1080), [TN3399](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1094), [Kylin3399](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1132), [ZCube1-Max](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1247), [CRRC](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1280), [SMART-AM40](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1317), [SW799](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1326), [ZYSJ](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1380), [DG-3399](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1492), [DLFR100](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1522), [Emb3531](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1549), [Leez-p710](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1609), [tvi3315a](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1687), [xiaobao](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1698), [Fine3399](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1790), [Firefly-RK3399](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/491), [LX-R3S](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2026), [Hugsun-x99](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2050), [Tb-ls3399](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2146), [Hisense-hs530r](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/572), [Tpm312](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2403), [ZK-rk39a](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2446), [YSKJ](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2673), [Fmx1-Pro](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2691), [Sv-33a6x](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/748), [AIO-3399b](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3185) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| rk3568 | [FastRhino-R66S](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1061), [FastRhino-R68S](https://github.com/ophub/amlogic-s9xxx-armbian/issues/774), [Radxa-E25](https://wiki.radxa.com/Rock3/CM/CM3I/E25), [NanoPi-R5S](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1217), [NanoPi-R5C](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1217), [HLink-H66K](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1726), [HLink-H68K](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1726), [HLink-H69K](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1726), [Seewo-sv21](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2017), [Mrkaio-m68s](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2155), [Swan1-w28](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2407), [Ruisen-box](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2508), [DG-TN3568](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2661), [Alark35-3500](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2911), [MMBox-Anas3035](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2995), [Wocyber-A3](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2978), [Photonicat](https://github.com/ophub/amlogic-s9xxx-openwrt/pull/827), [NSY-G16-Plus](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/845), [NSY-G68-Plus](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/845), [BDY-G18-Pro](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/847), [Gzpeite-P01](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3221), [LZ-K3568](https://github.com/ophub/amlogic-s9xxx-armbian/issues/3304) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| rk3566 | [Panther-X2](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1319), [JP-TvBox](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1867), [LCKFB-Taishan-Pi](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2538), [WXY-OEC-turbo-4g](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2736), [Station-M2](https://github.com/ophub/amlogic-s9xxx-openwrt/issues/744) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

###WXY-OEC-turbo-4g
[album]
![image.png][22]
[/album]
处理器: 瑞芯微 RK3566，4核 Cortex-A55@1.8GHz
内存：4GB DDR4
储存：8GB eMMC
网络：千兆以太网
电源: DC 12V 2A

| rk3528 | [HLink-H28K](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1726), [Radxa-E20C](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2324), [H96-Max-M2](https://github.com/ophub/amlogic-s9xxx-armbian/issues/2404) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| rk3328 | [BeikeYun](https://github.com/ophub/amlogic-s9xxx-armbian/issues/852), [Chainedbox-L1-Pro](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1680), [Station-M1](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1313), [Bqeel-MVR9](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1313), [Renegade/Firefly](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1861) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
| rk3318 | [RX3318-Box](https://github.com/ophub/amlogic-s9xxx-armbian/pull/2129) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |

| h6 | [Vplus](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1100), [Tanix-TX6](https://github.com/ophub/amlogic-s9xxx-armbian/issues/1120), [TQC-A01](https://github.com/ophub/amlogic-s9xxx-armbian/pull/1638) | [fnnas](https://github.com/ophub/fnnas/releases/tag/kernel_fnnas) |
###Tanix-TX6
[album]
![2026-01-27T10:20:14.png][24]
[/album]
处理器: Allwinner H616 64-bit quad core ARM® Cortex™ A53
储存：16GB/32GB eMMC
网络：Built-in Wifi, 802.1.1b/g/n
电源: DC 5V/2A
